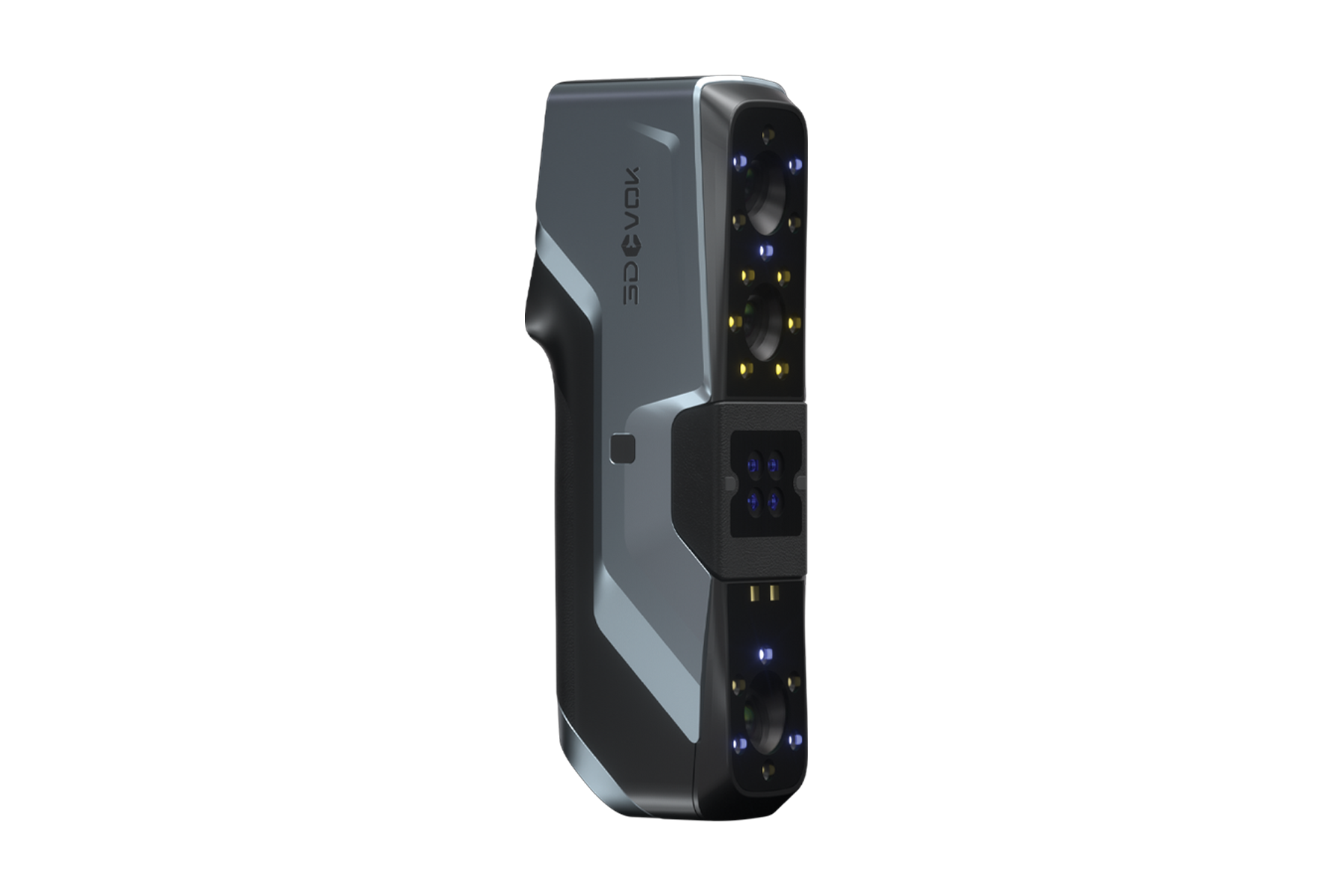

The 3DeVOK MT Gen2 combines SCANOLOGY’s industrial-grade technology with enhanced optics and updated algorithms. Designed for reverse engineering, automotive applications and 3D inspection, it enables efficient scanning of parts across a wide range of sizes and materials.

It delivers stable and consistent data when working with complex geometries and larger components, supporting workflows from design through to manufacturing.

– Accuracy: up to 0.03mm
– Resolution: up to 0.05mm
– Objects from: 0.05 – 5m

Quad-Light, Next-Generation Precision

The MT Gen2 Professional 3D Scanner is equipped with four light sources for detailed data capture:
– 34 cross blue laser lines
– 11 parallel blue laser lines
– Single blue laser line
– Large-area infrared speckle

This combination of light sources supports the capture of complex surfaces, deep holes and difficult-to-access areas. It also integrates with professional scanning software and CAD platforms, supporting a variety of workflows and applications.

Key Features of the 3DeVOK MT Gen2

Efficiency
– Accuracy up to 0.03 mm
– Resolution up to 0.05 mm
– Captures hard-to-reach areas

Usability
– Capable of scanning black and reflective surfaces without powder
– Suitable for both small and larger components
– Reliable outdoor performance

Reliability
– Industrial-grade foundation
– International certifications including CE-EMC, FCC and RoHS
– Accuracy calibration certificate

Versatility
– Reverse engineering
– Custom modification work
– 3D inspection
– Art and design applications

Brand-new Hardware Upgrade
– Dual black and white cameras
– Colour camera
– Single blue laser emitter
– Parallel blue laser emitter
– Cross blue laser emitter
– Infrared VCSEL

Why Professionals Choose the 3DeVOK MT Gen2 – Powerful

34 Cross Blue Laser Lines
Supports target-free 3D scanning across three light source modes, helping to simplify operation. The plug-and-play design also allows for efficient use on-site.

Resolution Evolved
Combines next-generation geometric features, textures and marker-based alignment technologies, allowing operation across different scenarios with minimal or no need for markers.

Complex Material Scanning
Data acquisition speeds of up to 4,500,000 points per second, with a maximum scanning frame rate of 70 frames per second.

Why Professionals Choose the 3DeVOK MT Gen2 – Usability

No Powder
Scan black and reflective surfaces

0.05 – 5 m
Multi-size scanning

Deep Capture
Captures hard-to-reach areas

Why Professionals Choose the 3DeVOK MT Gen2 – Confidence

Industrial-grade Foundation
Built on proven industrial technology for stable and reliable performance

Internationally Certified
Trusted worldwide with CE-EMC, FCC and RoHS approvals.

Accuracy Calibration Certificate
Precision guaranteed with ISO 17025 calibration certificate.

Why Professionals Choose the 3DeVOK MT Gen2 – Versatile

Reverse Engineering
Supports multiple formats including STL, ASC etc

Customised Modification
With 34 cross blue laser lines and accuracy up to 0.03 mm, the MT Gen2 captures detailed surfaces for automotive, motorcycle and custom modification projects

3D Inspection
Supports import into inspection software, enabling measurement and analysis of complex parts

Art and Design
With 11 parallel blue laser lines and resolution up to 0.05 mm, the MT Gen2 captures fine textures and detailed surfaces for creative applications

Price: £6,200 +VAT
