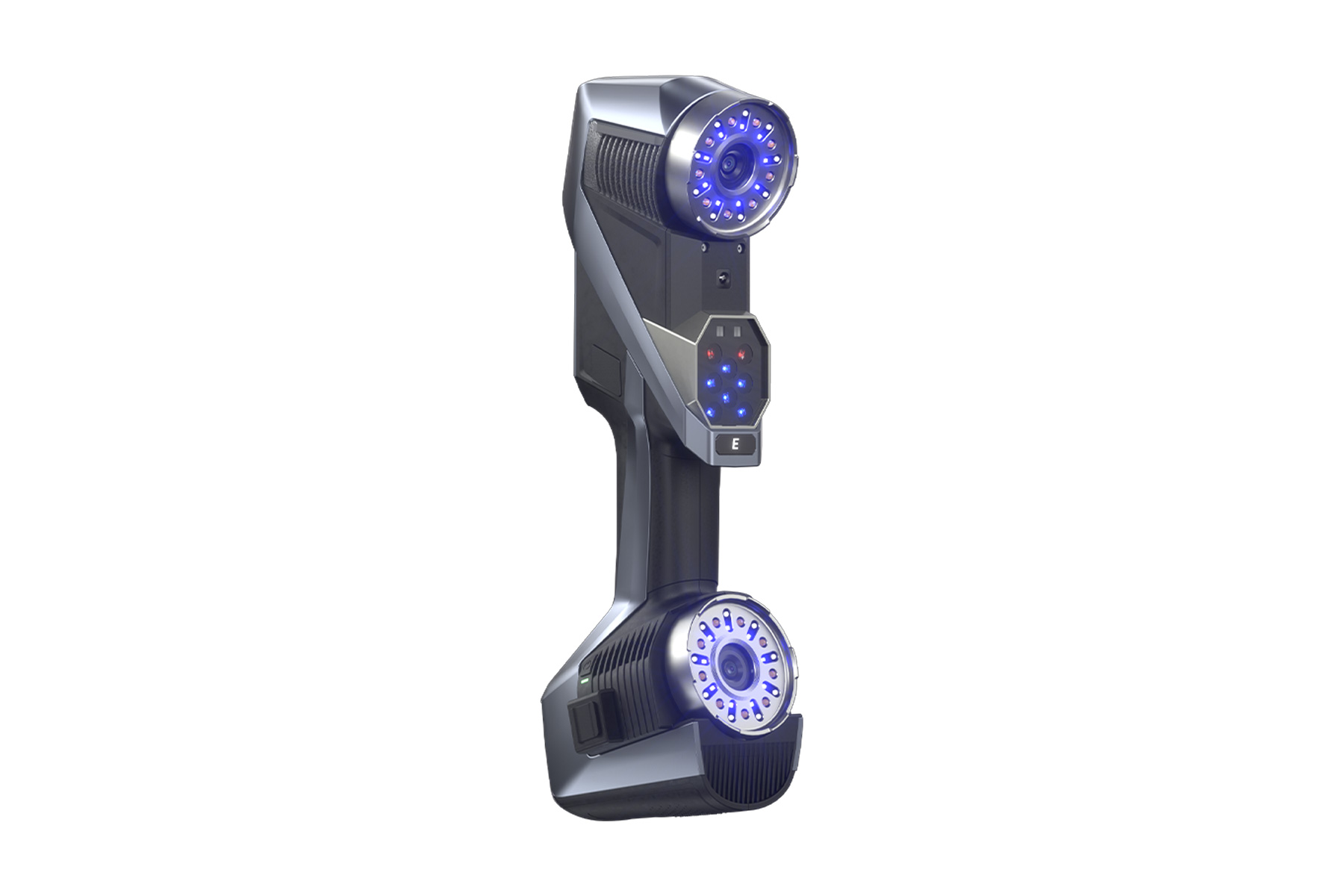

The KSCAN‑E from Scanology is a leading wireless 3D scanner that combines accuracy, speed and mobility. Its integrated computing module, dual-cycle battery and six scanning modes allow flexible measurement of everything from large surfaces to intricate details, deep recesses and edges. The adaptive photogrammetry system ensures consistent precision across extensive volumes, making it ideal for demanding industrial applications.

Key Specifications
– Accuracy: up to 0.020 mm
– Standard Volumetric Accuracy: 0.015 mm + 0.030 mm/m
– Measurement Rate: up to 8,290,000 measurements per second
– Scan Area: 1,440 mm × 1,000 mm

Main Features

Completely Wireless
Operate with a single hand, free of cables, thanks to the integrated computing module, dual-cycle battery and dual WNIC setup.

Metrology-Grade Accuracy
Achieves single-point precision of up to 0.020 mm for high-accuracy measurement tasks.

Versatile Scan Modes
– Ultra-Fast: 108 blue laser lines (quad-cross)
– Hyperfine: 17 parallel blue lines
– Large-Area: 19 infrared laser crosses
– Deep-Hole: 1 blue line
– Hole and Edge: Smart edge inspection
– Photogrammetry: Adaptive photogrammetry

Rapid Data Capture
Quad-cross scanning technology with 180 FPS delivers up to 8.29 million points per second.

Fine Detail Resolution
Capable of capturing details as small as 0.010 mm.

Ergonomic and Portable
Lightweight, one-handed design includes a built-in touchscreen, smart guidance and customisable buttons.

Efficient Calibration
Quick calibration process for seamless on-site setup.
