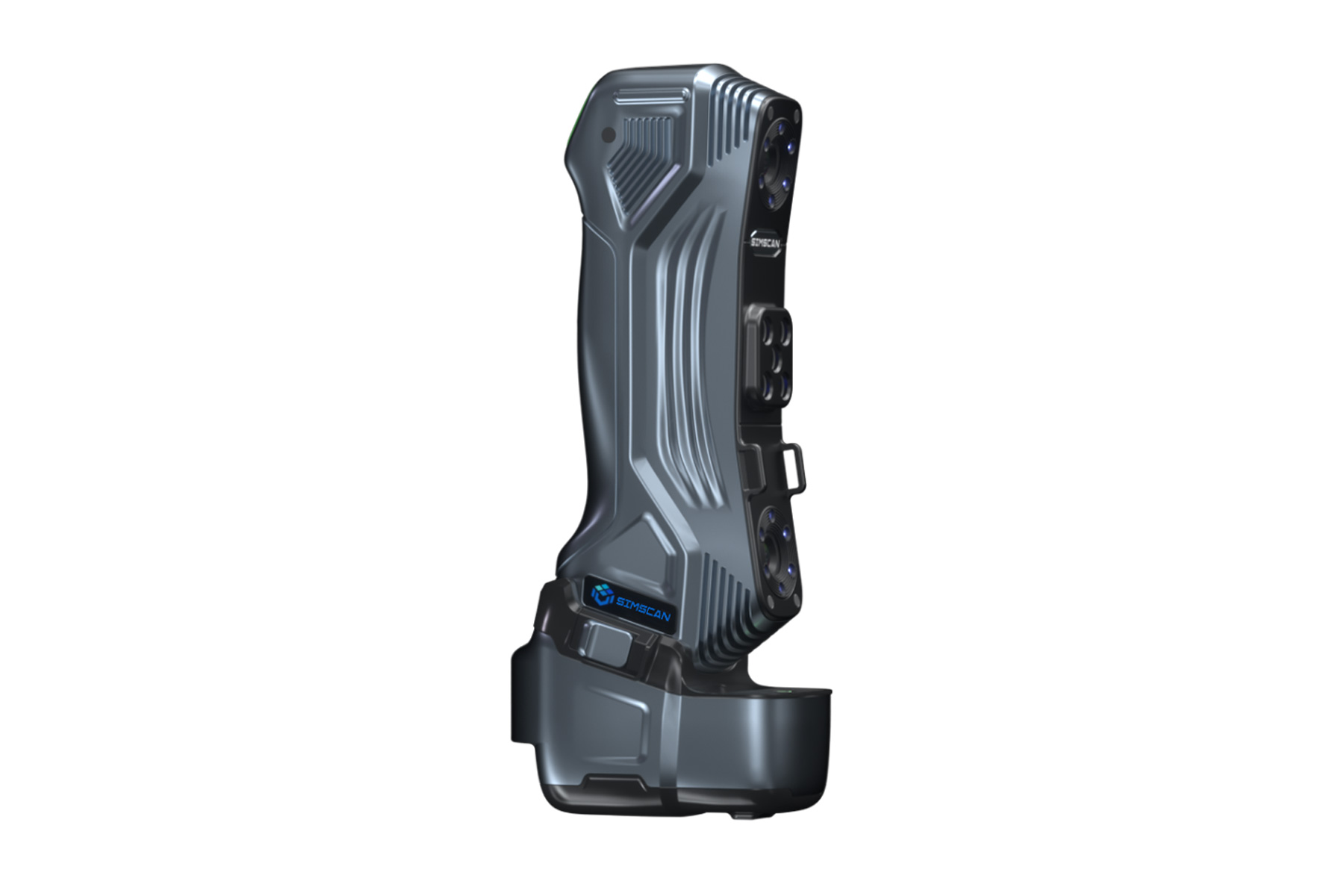

SIMSCAN‑E from Scanology is a compact, intelligent wireless 3D scanner with built-in edge computing and Wi‑Fi. Designed for portable, high-precision scanning in confined or remote spaces, its lightweight, palm-sized form allows one-handed operation while delivering metrology-grade accuracy.

Key Specifications
– Accuracy: up to 0.020 mm
– Measurement Rate: up to 6.3 million measurements per second
– Standard Volumetric Accuracy: 0.015 mm + 0.035 mm/m
– Volumetric Accuracy with MSCAN‑L15: 0.015 mm + 0.012 mm/m
– Handheld Weight: 600 g

Main Features

Flexible Operation
Easily switch between wired and wireless modes using the detachable charging base.

Three Scan Modes
– Ultra-Fast: 63 blue laser lines for rapid geometry and dimension scanning
– Hyperfine: 17 parallel blue laser lines for detailed scanning of intricate features and complex structures
– Deep-Hole: 1 blue laser line for measuring recesses and hard-to-access areas

High-Speed Data Capture
Captures up to 6.3 million measurements per second at 180 FPS, ensuring fast and precise measurement.

Portable and Ergonomic
Lightweight, one-handed full-metal body (203 × 80 × 44 mm) provides flexible and comfortable scanning.

Extended Operation
Dual batteries with hot-swap capability allow uninterrupted scanning for longer sessions.
